| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330103-00-10-10-12-05 |

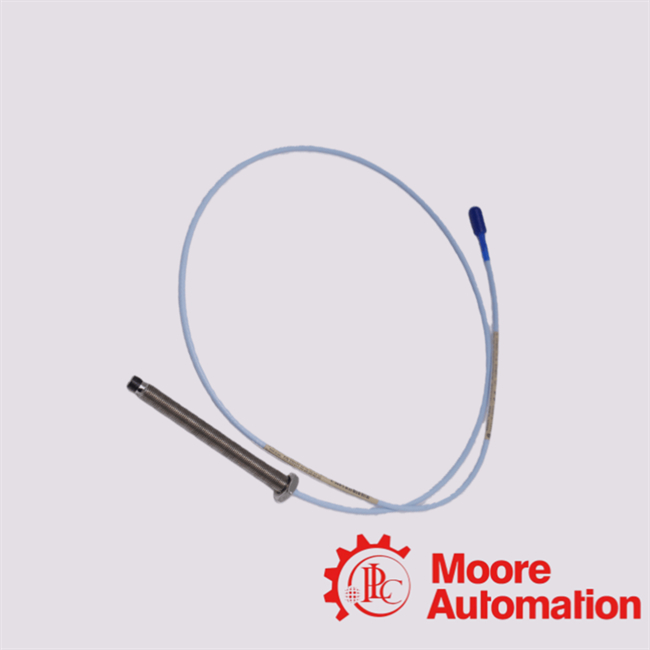

The 330103-00-10-10-12-05 is a specific configuration of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, which is used for non-contact vibration and displacement measurements on fluid-film
bearing machines.The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface,
capable of both static (position) and dynamic (vibration) measurements.It is primarily used for vibration and position measurement
applications on fluid-film bearing machines, as well as Keyphasor®
and speed measurement applications.
330103-00-10-10-12-05 Details
|
FAQ |
1. What is the measurement range of the 3300 XL 8 mm Proximity Transducer System?A1: The measurement range is from 0.25 mm to 2.3 mm (10–90 mils) with a linear output from -1Vdc to -17Vdc. The optimal gap setting is 1.27 mm (50 mils) at -9Vdc for radial vibration monitoring. |
2. What is the probe resistance of the system?The probe resistance is 7.59Ω ±0.50 at 1.0 metre cable length. |
3. Is the 3300 XL 8 mm Proximity Transducer System compatible with other 3300 series components?Yes, each component of the 3300 XL 8 mm Transducer System is backward compatible and interchangeable with other non-XL 3300 series 5 and 8 mm components. |
4. Can the system be used for both static and dynamic measurements?Yes, the system is capable of both static (position) and dynamic (vibration) measurements. |
Inquiry now: miya@mvme.cn
| 330106-05-30-20-02-CN | 330105-02-12-15-12-CN | 330104-00-13-10-02-05 |
| 330106-05-30-15-02-CN | 330105-02-12-10-02-CN | 330104-00-13-10-02-00 |
| 330106-05-30-15-02-00 | 330105-02-12-10-02-05 | 330104-00-13-10-01-CN |
| 330106-05-30-10-02-CN | 330105-02-12-10-02-00 | 330104-00-12-10-02-05 |
| 330106-05-30-10-02-05 | 330105-02-12-05-02-05 | 330104-00-12-10-02-00 |
| 330106-05-30-10-02-00 | 330105-00-05-10-02-00 | 330104-00-11-10-02-05 |
| 330106-05-30-05-02-CN | 330104-19-25-10-11-05 | 330104-00-11-05-02-00 |
| 330106-05-30-05-02-00 | 330104-15-23-50-02-00 | 330104-00-10-10-02-CN |
| 330106-00-04-10-02-00 | 330104-15-23-10-02-00 | 330104-00-10-10-02-05 |
| 330105-02-12-50-02-00 | 330104-13-20-50-02-00 | 330104-00-10-10-02-00 |
