| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330854-080-25-05 |

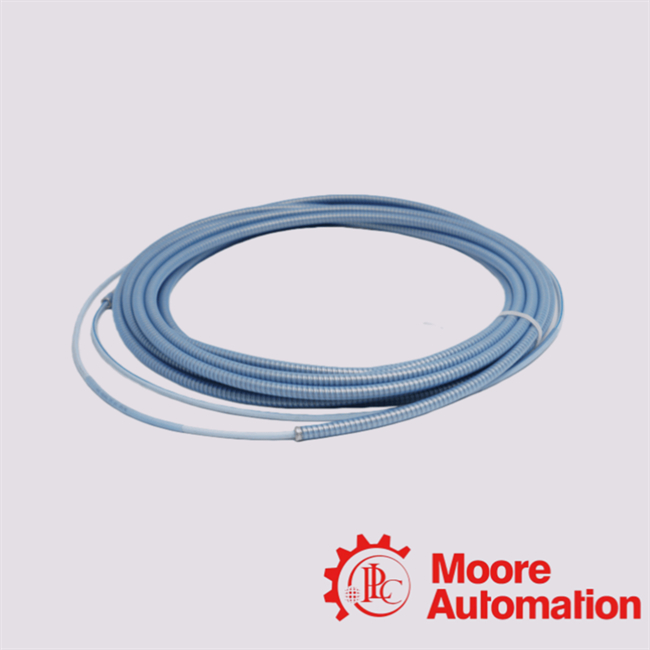

The Bently Nevada 330854‑080‑25‑05 Extension Cable (which is part of the Bently Nevada 3300 XL 25 mm proximity‑transducer family).This item belongs to the Bently Nevada “3300 XL 25 mm” Proximity Transducer
System.The 25 mm version has a nominal output scale factor of ~0.787 V/mm (20 mV/mil) and a linear range of about 12.7 mm (500 mils) when calibrated to a standard target (AISI 4140 steel)
under specified conditions.Part number 330854‑080‑25‑05 is for the extension cable portion of that system (not the probe itself).A high‑performance, armored,
high‑temperature extension cable (~8 m length) for the 25 mm probe system, with FluidLoc cable option, designed for industrial
rotating‑machinery service (e.g., large steam turbines) and approved
for hazardous‑area use.
|
FAQ |
|
Q1: Is 330854‑080‑25‑05 the probe or the cable? begin with 330851 (or 3308xx etc) for the probe body. The 330854 series denotes the extension cable. The datasheet shows “Figure 17 330854, 3300 XL 25 mm Extension Cable”. |
|
Q2: Can I use this extension cable with a shorter probe length or different system length? to the Proximitor version you use. The datasheet emphasises that the extension cable length must be appropriate so the system remains calibrated/interchangeable. Using a mismatched length may reduce linear range or accuracy. |
|
Q3: What temperature and environment is this cable rated for? environments. For the 25 mm family, the probe is rated for continuous operation at ~200 °C (392 °F) and intermittent up to ~250 °C (482 °F). The cable variant likely shares that rugged rating. It is armored—meaning additional mechanical protection—suitable for high vibration, steam turbine surroundings, etc. |
