| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330103-02-06-10-02-05 |

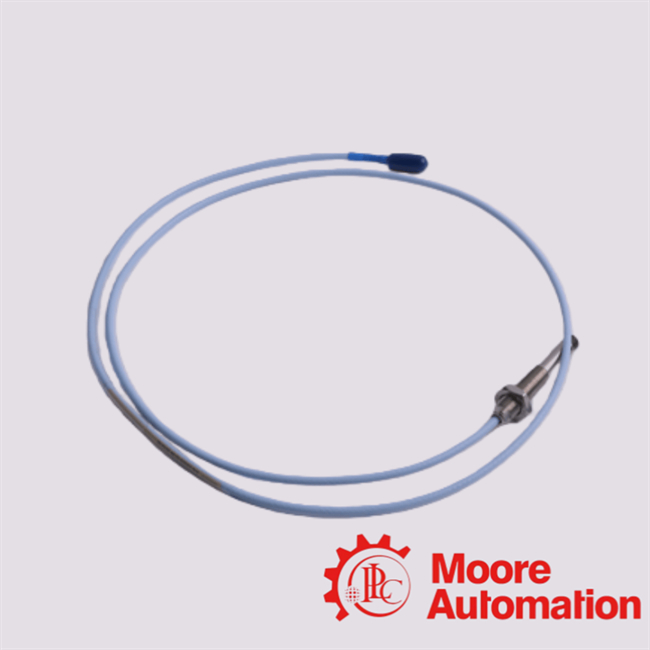

The Bently Nevada 330103‑02‑06‑10‑02‑05 Proximity Probeis part of the 3300 XL 8 mm Proximity Transducer System by Bently Nevada. According to the datasheet for the 3300 XL 8 mm system:“The
system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic
(vibration) values.”The components in the system include: a probe, an extension cable, and a Proximitor® sensor.Thus the probe 330103‑02‑06‑10‑02‑05 might be
described as:8 mm (0.31 in) diameter probe bodyM10 × 1 mounting thread, without armor20 mm unthreaded length
|
FAQ |
|
Q1: What does this probe measure? allowing measurement of static displacement (position) and dynamic displacement (vibration). The voltage output is proportional to gap. |
|
Q3: Is this probe compatible with other 3300 XL components? without bench matching when used correctly. However, you should ensure you remain within the correct family (8 mm) and that the extension cable and sensor are matched for length/characteristics. |
|
Q5: If I change the cable length (e.g., use longer than 1.0 m), will the probe still work? length and electrical characteristics (probe + cable + sensor). While the 3300 XL family supports interchangeability, changing length outside what is validated may affect accuracy and calibration. |
