IC693MDL340 GE 120 볼트, 0.5 Amp AC 출력 모듈

IC693MDL340 GE 120 volt, 0.5 Amp AC Output Module

⇒ Click here for good price IC693MDL340

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

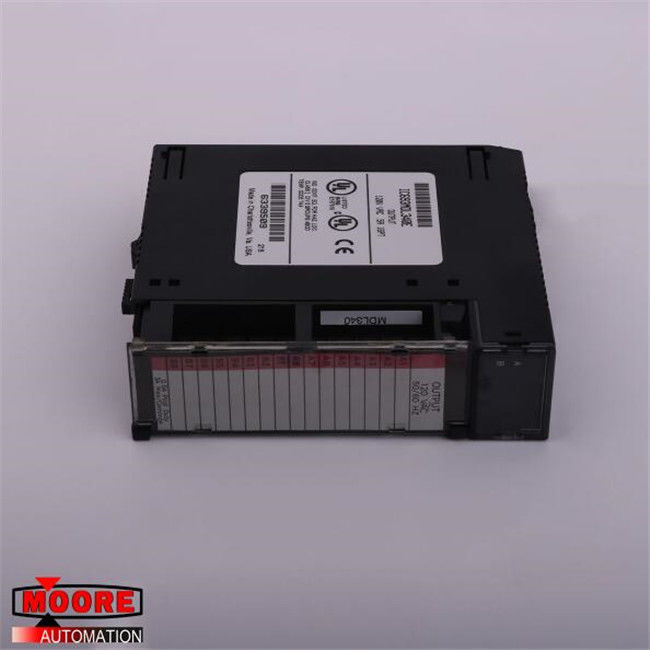

The IC693MDL340 is a 120 volt, 0.5 Amp AC Output Module of the Series 90-30 manufactured by GE Fanuc. It provides 16 output points in two isolated groups with eight points in each. Each of these groups has a separate common associated with it (the two commons are not integrated inside the IC693MDL340), allowing each group to be used with independent AC supply phases. Alternatively, it is also possible to power both commons with the same supply. Each group has a 3-ampere fuse for protection, as well as an RC snubber for each output to guard them against transient electrical noise from the power line. This module also has an output voltage range of 85 to 132 volts AC, 50/60 Hz, and an output current of 0.5 amperes maximum per point. The maximum per group is 3 amps.

IC693MDL340 provides a high-degree of inrush current, making its outputs advisable for controlling a great variety of loads, both inductive and incandescent. The user must provide an AC Power supply to operate the loads connected to outputs. This module can only function on an AC power source. IC693MDL340 has LED signaling lights at the top, designed to represent the ON/OFF status for each point. Additionally, it also has two horizontal lines with another eight green LEDs each, and one final LED at the center between the two lines. The eight LEDs at the top, which are identified as A1 to 8, indicate output status. The red “F” LED turns on to signal a blown fuse. Unless there is a load connected to the blown fuse, the LED will not function.

IC693MDL340 features an insert that separates its hinged door’s external and internal surface. Once this door is closed, circuit wiring information is shown the inside surface of the module, and circuit identification information can be found on the outside surface. The external left edge of the insert is colored red to indicate a high-voltage module. IC693MDL340 module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system. IC693MDL340 has a response time of 1 ms maximum when ON and a maximum off response time of ½ cycle. It has a power consumption of 315 mA (when all outputs are on) from 5 voltages bus on backplane.
