| 원래 장소: | 미국 |
| 브랜드 이름: | AB |
| 인증: | CO.CQ |
| 모델 번호: | 1771-ozl |

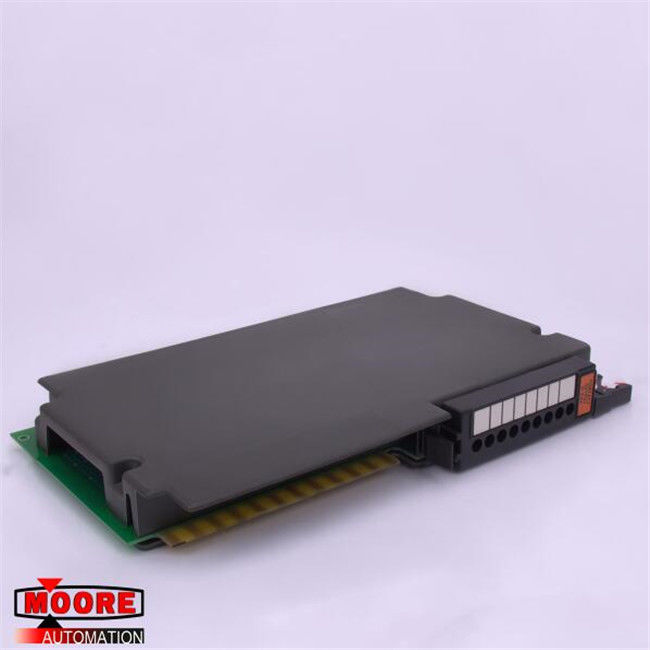

1771-OZL 1771OZL AB AB Digital Output Module
⇒ Click here for good price 1771-OZL
| Brand/Manufacturer | AB /USA |
| Part Number |
1771-OZL |
| Alternate Part Number | 1771-OZL |
| Description | MOTOR SERVO |
| Dimennsions |
25.4x14.6x2.8cm |
| Weight | 0.5kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1771-OZL is a PLC-5 digital dry-reed relay contact output module. It comes with an 8 Form A or N.O. (normally open) output points that are grouped into 4 sets of 2 outputs, with each group having its own common. These outputs are electrically-isolated from the module’s logic circuitry. Eight status indicators on the front plate of the module are available representing the control status of the output relays. Once a relay has been energized, its corresponding indicator will be lit up. It uses a 1771-WD wiring arm and can be installed in a 1771 Series A or B I/O chassis. The entire 1771-OZL module measures 4.38 x 1.5 x 11.81 inches.
The voltage ratings of this module are 0-24V AC and 0-24V DC and maximum current rating is 100 mA per output. Note that the peaks, surges, and spikes must fall within the range of the power rating. The 1771-OZL has power ratings of 2.4 W resistive each per output for both DC and suppressed AC. This module also has minimum contact loads of 10 mA at 24V e
