| 원래 장소 | 미국 |
| 브랜드 이름 | AB |
| 인증 | CO.CQ |
| 모델 번호 | 1771-ixe |
1771-IXE 1771IXE AB AB Analog Input Module
⇒ Click here for good price 1771-IXE
| Brand/Manufacturer | AB/USA |
| Part Number |
1771-IXE |
| Alternate Part Number | 1771-IXE |
| Description | MOTOR SERVO |
| Dimennsions |
3x15x25.8cm |
| Weight | 0.56kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

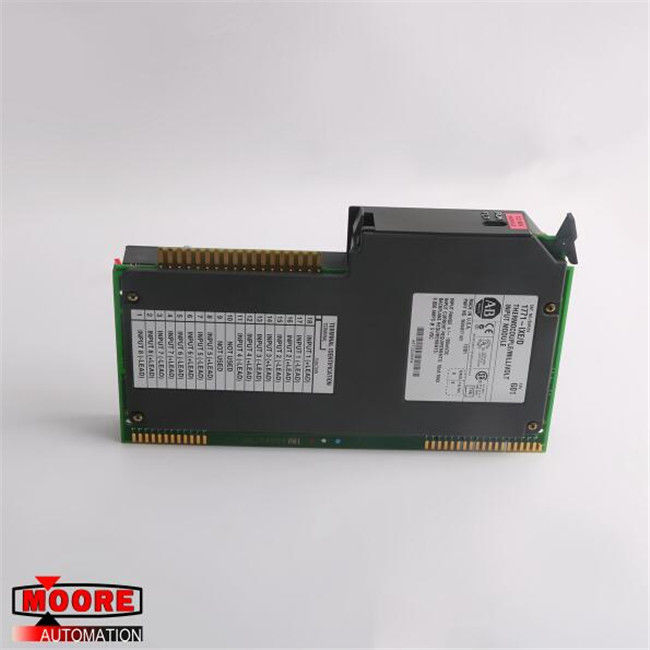

The AB 1771-IXE is a PLC 5 Analog Input Module. It is a Thermocouple/Millivolt Input Module. This module utilizes Block Transfer Read and Write (BTR) and (BTW) instructions to transfer input data words from its memory to the PLC processor. The 1771-IXE requires a single-slot for installation in a 1771 I/O chassis and needs no external power supply. The 1771-IXE module has 8 floating differential inputs for thermocouple or millivolt input ranges which includes types E, J, K, T, R, and S thermocouples and +/-100 millivolts. Either 8 inputs are allowed of the same type or 4 each of 2 different types. The 1771-IXE includes cold junction compensation with a range of 0 to 60 degrees Celsius and +/-0.5 degree Celsius accuracy. It has a selectable temperature scale of Celsius or Fahrenheit with a temperature resolution of 1 degree Celsius or 1 degree Fahrenheit and a millivolt resolution of 10 µV.
The AB 1771-IXE requires a backplane current load of 750mA at 5V and has a channel update time of 50 milliseconds per 8 channels. Its wiring is connected to the 1771-WI field wiring arm eliminating the need for disconnecting the wires when replacing the module. The 1771-IXE has a maximum power dissipation of 4.25 Watts and maximum thermal dissipation of 14.5 BTU/hour. Keying bands must be put between pins 20 to 22 and pins 24 to 26 which accept only this module. The 1771-IXE module has high and low-temperature alarms that are selectable by the user. It contains a green RUN and a red FLT indicator on the front panel for power and fault status. During power-up, it performs self-diagnostics and reports its status. It provides open-circuit detection in case thermocouple fails. The 1771-IXE automatically calibrates offset and gain for each channel, eliminating the need of potentiometers.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
