| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330500-06-02 |

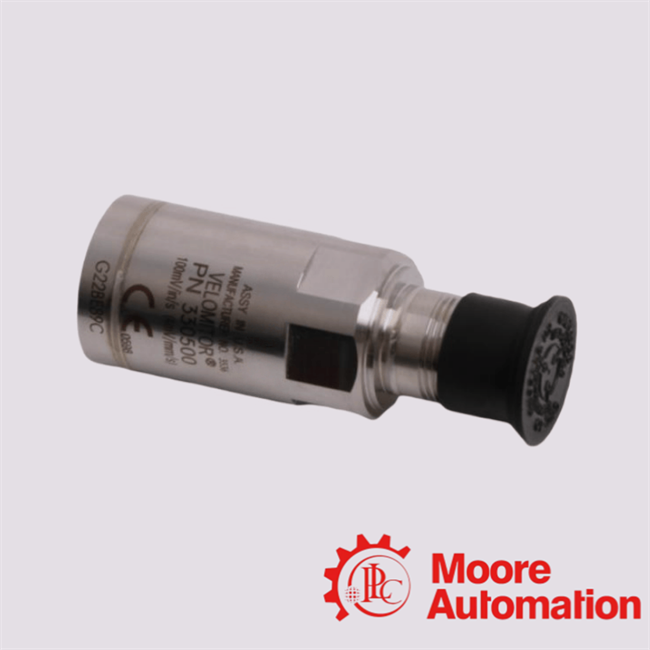

The Bently Nevada 330500 series is part of the Velomitor family of piezoelectric velocity / vibration sensors designed to
measure absolute vibration (i.e. relative to free space) of a machine
casing, bearing housing, or structure.
330500-06-02 Details
|
FAQ |
|
Q1. Is “330500-06-02” a proximity probe (eddy-current) or a vibration sensor? Despite “proximity” sometimes being used loosely, the 330500 series is a piezoelectric velocity / vibration sensor (Velomitor). It senses casing vibration rather than shaft displacement. |
|
Q2. What does the “-06-02” suffix mean? The “-06” often refers to the mounting thread / adapter, e.g. “-06: 5/8-18 UNF thread” in some listings. The “-02” may denote a particular agency approval / certification (for e.g. ATEX / hazardous area compatibility) in that variant. |
|
Q3. How do I mount the sensor? Use a rigid, clean, smooth mounting surface on the bearing housing or structural casing. Improper mounting can degrade amplitude and frequency response. Torque the mounting properly (24–40 in-lb).
|
|
Q4. What range of vibration signals can it detect? Useful within ~4.5 Hz to 5 kHz (±3 dB) band. Up to ~1270 mm/s (50 in/s) peak velocity.
|
Inquiry now: miya@mvme.cn
