| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330102-00-40-05-02-00 |

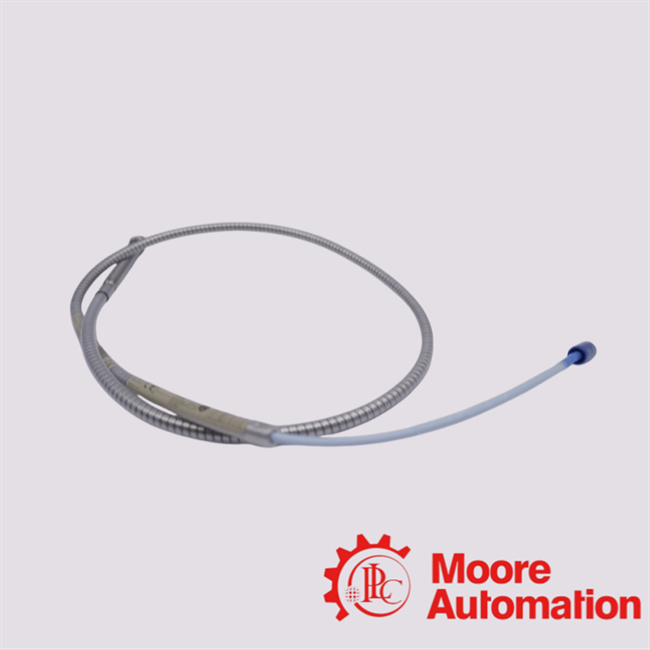

The Bently Nevada 330102-00-40-05-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for
precise, non-contact measurement of shaft displacement
and vibration in industrial machinery.
330102-00-40-05-02-00 Details
|
FAQ |
|
Q1: What does the part number 330102-00-40-05-02-00 signify? 02: Connector and cable-type option (Miniature coaxial ClickLoc connector, standard cable). 330102: Model number for the 3300 XL 8 mm Probe. 00: Agency approval option (Not required). 40: Overall case length option (4.0 inches). 00: Unthreaded length option (0.0 inches). 05: Total length option (5.0 meters). Q2: Is the 3300 XL 8 mm Proximity Transducer System compatible with other Bently Nevada systems? Yes, components of the 3300 XL 8 mm system are backward compatible and interchangeable with other non-XL 3300 series 5 and 8 mm transducer system components. Q3: What are the power requirements for the Proximitor® Sensor? The Proximitor® Sensor requires a -17.5 Vdc to -26 Vdc power supply without barriers, consuming a maximum of 12 mA. Q4: What industries commonly use the 3300 XL 8 mm Proximity Transducer System? Industries such as power generation, oil and gas, aerospace, and process industries utilize this system for monitoring machinery health and performance. |
