| 원래 장소: | 미국 |
| 브랜드 이름: | Bently Nevada |
| 인증: | CO.CQ |
| 모델 번호: | 330104-00-06-10-01-00 |

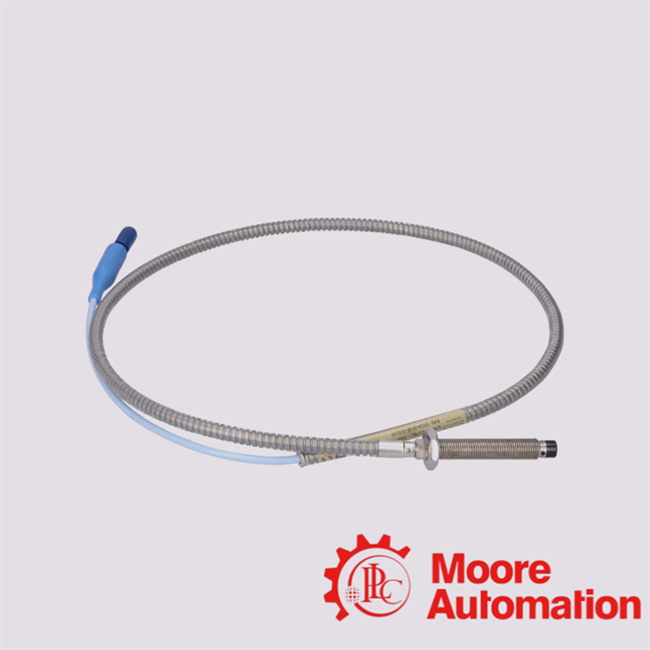

The Bently Nevada 330104-00-06-10-01-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise, non-contact measurement
of shaft displacement and vibration in industrial machinery. This system is widely used in applications
such as vibration monitoring, shaft position measurement,
and Keyphasor® speed detection.
330104-00-06-10-01-00 Details
|
FAQ |
|
Q1: What does the part number 330104-00-06-10-01-00 signify? 330104: Model number for the 3300 XL 8 mm Probe. 00: Unthreaded length option ( 0.0 inches ). 06: Overall case length option (6.0 inches). 10: Total length option (10.0 meters). 01: Connector and cable-type option (Miniature coaxial ClickLoc connector with connector protector, standard cable). 00: Agency approval option (Not required). Q2: Is the 3300 XL 8 mm Proximity Transducer System compatible with other Bently Nevada systems? Yes, components of the 3300 XL 8 mm system are backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. Q3: What are the power requirements for the Proximitor® Sensor? The Proximitor® Sensor requires a -17.5 Vdc to -26 Vdc power supply without barriers, consuming a maximum of 12 mA. Q4: What industries commonly use the 3300 XL 8 mm Proximity Transducer System? Industries such as power generation, oil and gas, aerospace, and process industries utilize this system for monitoring machinery health and performance. |
Inquiry now: miya@mvme.cn
3300 XL Proximity Probe
3300 Proximitor Sensor
3500 Power Supply
1900/65A
3500/42 Monitor Module
The 990 Vibration Transmitter
| 330104-00-08-10-02-CN | 330104-00-06-10-02-00 | 330104-00-04-10-02-05 |
| 330104-00-08-10-02-00 | 330104-00-06-05-02-00 | 330104-00-04-10-02-00 |
| 330104-00-08-10-01-05 | 330104-00-05-50-02-00 | 330104-00-04-05-02-00 |
| 330104-00-08-10-01-00 | 330104-00-05-10-02-CN | 330104-00-03-05-02-00 |
| 330104-00-08-05-02-05 | 330104-00-05-10-02-00 | 330103-15-23-05-02-CN |
| 330104-00-08-05-02-00 | 330104-00-05-05-02-CN | 330103-13-23-05-02-00 |
| 330104-00-07-90-02-00 | 330104-00-05-05-02-05 | 330103-12-25-10-02-00 |
| 330104-00-07-10-02-CN | 330104-00-05-05-02-00 | 330103-12-25-10-01-00 |
| 330104-00-07-05-02-00 | 330104-00-04-50-11-00 | 330103-11-19-10-02-00 |
| 330104-00-06-10-02-CN | 330104-00-04-10-02-CN | 330103-10-20-10-02-00 |
